Struchtúr Cábla Ciseal-Twisted agus Croí Treisiú Ionaid Neamh-Miotalach Cumasaigh an cábla chun teannas níos mó a sheasamh
Is é an t-ábhar seachtrach a bhaineann le cábla snáthoptaice a bhriseadh amach ilchuspóireach atá frithsheasmhach in aghaidh creimthe, uiscedhíonach, frithsheasmhach in aghaidh UV, lasair-retardant agus atá neamhdhíobhálach don chomhshaol.
Snáth Aramid mar bhall neart a dhéanamh cábla a bhfuil neart teanntachta den scoth ag cábla
Dáileadh faoi dhíon aon chuspóra cábla aon chuspóra
Cábla dáilte cnámh droma
Comhlíon na Caighdeáin YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, etc. Chomh maith le gnáth-tháirgí PVC, tá táirgí ann freisin a bhfuil deimhniú OFNR déanta acu; Baineann táirgí LSZH úsáid as ábhair éagsúla chun freastal ar IEC60332-1 nó IEC60332-3C.

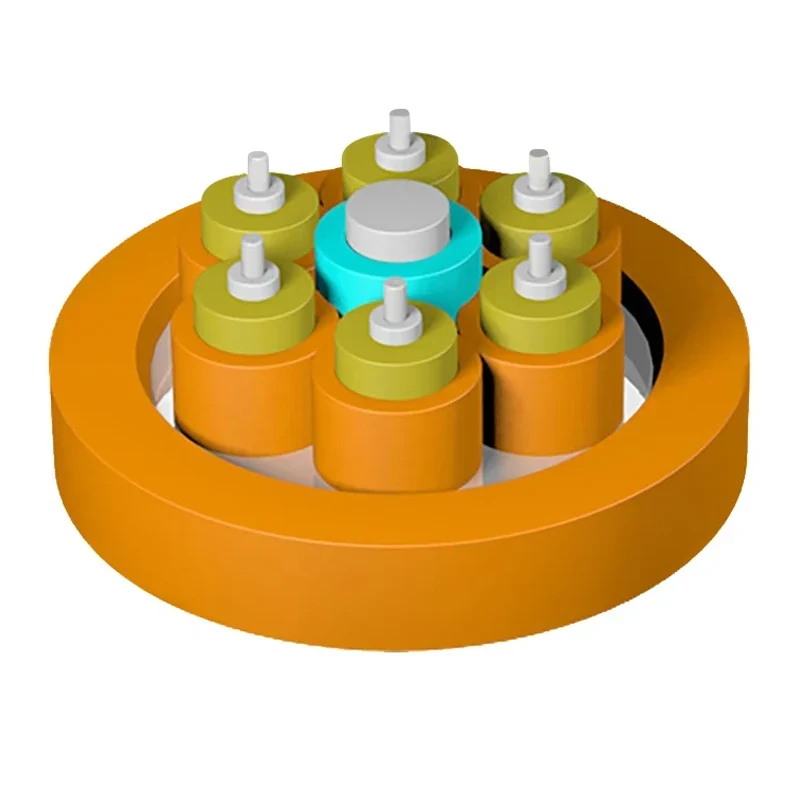

Snáithín maolánach 1.tight
2. Snáthán
3.frp Ball Neart
4.subunit seaicéad
5. Jacket
|
Samhail chábla |
Trastomhas cábla (mm) |
Meáchan cábla (tag) (kg/km) |
Neart teanntachta Téarma fada/gearrthéarmach (N) |
Friotaíocht crush Téarma fada/gearrthéarmach (N/100mm) |
Ga lúbthachta Dinimiciúil/statach (mm) |
|
|
Seaicéad PVC |
Seaicéad lszh |
|||||
|
04 |
7.4 ± 0.5 |
50 |
56 |
130/440 |
300/1000 |
20d/10d |
|
06 |
8.4 ± 0.5 |
66 |
74 |
200/660 |
300/1000 |
20d/10d |
|
08 |
9.8 ± 0.5 |
91 |
101 |
200/660 |
300/1000 |
20d/10d |
|
12 |
12.4 ± 0.5 |
140 |
155 |
200/660 |
300/1000 |
20d/10d |
|
24 |
14.4 ± 0.5 |
181 |
201 |
400/1320 |
300/1000 |
20d/10d |
|
36 |
16.4 ± 0.5 |
208 |
255 |
400/1320 |
300/1000 |
20d/10d |
|
48 |
19 ± 0.5 |
280 |
344 |
400/1320 |
300/1000 |
20d/10d |
|
Cineál snáithín |
Caoradh |
Ontl |
Bandaleithead mód éifeachtach |
10 Fad Nasc Ethernet GBIT/S |
Ga lúb íosta |
|||
|
Coinníollacha a chur le |
1310/1550Nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Luach tipiciúil |
Uasluach |
Luach tipiciúil |
Uasluach |
|||||
|
Aonad aonad |
DB/km |
DB/km |
DB/km |
DB/km |
Mhz.km |
Mhz.km |
m |
mm |
|
G652D |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
16 |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
|
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
