Solúbthacht agus Bendability den scoth
Déanann an snáth aramid neart teanntachta den scoth ar an gcábla
Is féidir gráid éagsúla lasair a shaincheapadh
Ftth (snáithín sa bhaile)
Réamh-fhoirceannadh sa mhonarcha
Cáblaí laistigh agus nascacht ón aer lasmuigh
|
. |

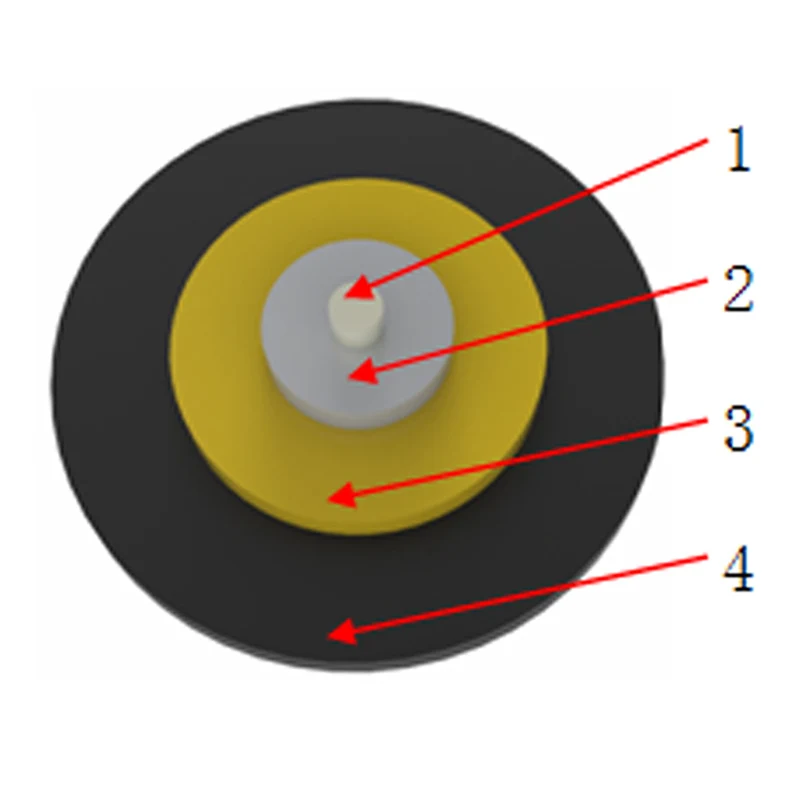

Mír |
Ábhar |
|
1 |
Snámh snámha |
G.652d (B1.3), G.657A1 (B6A1), G.657A2 (B6A2)… |
|
2 |
Maolán daingean |
PVC 、 Szh |
|
3 |
Comhalta láid |
Snáth aramid |
|
4 |
An truaill sheachtrach |
Lszh |
|
5 |
Dath |
Bán nó dubh |
|
Cineál cábla |
Lárlíne |
Neart teanntachta |
Friotaíocht crush |
Ga lúbthachta |
||||||||
|
B6A2 |
B6A1 |
B1.3 |
||||||||||
|
Maolán daingean |
ábalta |
Go fadtréimhseach |
Gearrthéarma |
Go fadtréimhseach |
Gearrthéarma |
Statach |
Dinimiciúil |
Statach |
Dinimiciúil |
Statach |
Dinimiciúil |
|
|
(mm) |
(N) |
(N/100mm) |
(mm) |
(mm) |
(mm) |
|||||||
|
Gjrh - 1 |
0.90 |
2.5 |
80 |
150 |
500 |
1000 |
15 |
30 |
20 |
40 |
30 |
60 |
|
Gyrh - 1 |
0.90 |
3.0 |
200 |
400 |
1000 |
2200 |
15 |
30 |
20 |
4 |
30 |
60 |
|
Cineál snáithín |
Tanú (max) |
Caillteanas Macra -Bend (Max) |
|||||
|
1310nm |
1550nm |
Φ30mm 10 gciorcal (casadh) |
Φ20mm 1 chiorcal (cas) |
Φ15mm 1 chiorcal (cas) |
Φ32mm 1 chiorcal (cas) |
Φ60mm 100 ciorcal (casadh) |
|
|
（DB/km） |
（Db） |
||||||
|
G.652 D. |
0.38 |
0.28 |
N/A. |
N/A. |
N/A. |
0.05 @1550nm |
0.05 @1625nm |
|
G.657 A1 |
0.38 |
0.28 |
0.25 @1550nm 1.00 @1625nm |
0.75 @1550NM 1.50 @1625nm |
N/A. |
N/A. |
N/A. |
|
G.657 A2 |
0.38 |
0.28 |
0.03 @1550nm 0.10 @1625nm |
0.1 @1550NM 0.2 @1625nm |
0.5 @1550nm 1.0 @1625nm |
N/A. |
N/A. |
|
Iompar & Stóráil |
Suiteáil |
Oibriú |
Luach |
|
-20 ℃ - +60 ℃ |
-10 ℃ - +50 ℃ |
-20 ℃ - +60 ℃ |
ROHS |
Is féidir na luachanna go léir thuas a oiriúnú.
