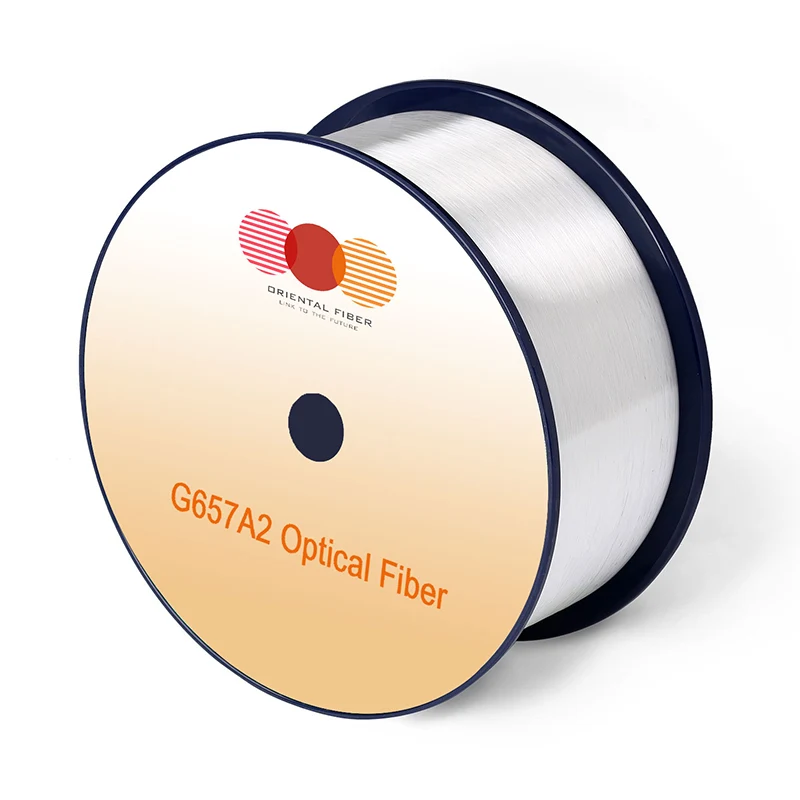

Snáithín optúil aon-mhodh G.657.a2

Saintréithe

Coinníollacha

Luachanna sonraithe

Aonaid

Saintréithe optúla

Caoradh

1310nm

≤0.35

[DB/km]

1383nm (tar éis H2 ag dul in aois)

≤0.35

[DB/km]

1460nm

≤0.25

[DB/km]

1490nm

≤0.23

[DB/km]

1550nm

≤0.21

[DB/km]

1625nm

≤0.23

[DB/km]

Tanú vs tonnfhad

Max. α DI ERENCENCE

1285-1330Nm, ag tagairt do 1310Nm

≤0.03

[DB/km]

1525-1575nm, ag tagairt do 1550Nm

≤0.02

[DB/km]

Tonnfhad scaipthe nialas (λ0)

-

1300-1324

[NM]

Fána scaipthe nialas (S0)

-

≤0.092

[PS/(nm2 · km)]

PMD

Snáithín uasta aonair

-

≤0.1

[PS/√km]

Luach Dearaidh naisc (M = 20, Q = 0.01%)

-

≤0.06

[PS/√km]

Luach tipiciúil

-

0.04

[PS/√km]

Tonnfhad cuto ff cábla (λcc)

-

≤1260

[NM]

Trastomhas Réimse Mód (MFD)

1310nm

8.4-9.2

[μM]

1550nm

9.3-10.3

[μM]

Innéacs athraonta de ghrúpa eipiciúil (ne ff)

1310nm

1.466

-

1550nm

1.467

-

Neamhleanúnachais pointe

1310nm

≤0.05

[DB]

1550nm

≤0.05

[DB]

Saintréithe geoiméadracha

Trastomhas cumhdaigh

-

125.0 ± 0.7

[μM]

Neamhchiorclán a chumhdach

-

≤0.7

[%]

Trastomhas brataithe

-

235-245

[μM]

Earráid chomhlárnach claonta brataithe

-

≤12.0

[μM]

Neamhchiorclán a chlúdach

-

≤6.0

[%]

Earráid chomhlárnach croí-slading

-

≤0.5

[μM]

Curl (ga)

-

≥4

[M]

Fad seachadta

-

Suas le 50.4

[km/reel]

Saintréithe comhshaoil

1310nm, 1550Nm & 1625nm

Spleáchas teochta tanúchán a tharlódh

-60 ℃ go +85 ℃

≤0.05

[DB/km]

Teochtán Teochta Teochta Teochta Tanúcháin

-10 ° C go +85 ° C, 98% RH

≤0.05

[DB/km]

Spleáchas Wateroak tanúchán a tharlódh

23 ° C, ar feadh 30 lá

≤0.05

[DB/km]

Spleáchas ar theas taise tanúchán a tharlódh

85 ° C agus 85% RH, ar feadh 30 lá

≤0.05

[DB/km]

Ag dul in aois teasa tirim

85 ℃, ar feadh 30 lá

≤0.05

[DB/km]

Sonraíocht mheicniúil

Tástáil cruthúnais

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[KPSI]

Tanúchán spreagtha macra-lúbtha

Casann 10 gcinn timpeall ar gha de gha 15 mm

1550nm

≤0.03

[DB]

Casann 10 gcinn timpeall ar gha de gha 15 mm

1625nm

≤0.1

[DB]

1 Cas timpeall mandrel de gha 10 mm

1550nm

≤0.1

[DB]

1 Cas timpeall mandrel de gha 10 mm

1625nm

≤0.2

[DB]

1 Cas timpeall mandrel de gha 7.5 mm

1550nm

≤0.5

[DB]

1 Cas timpeall mandrel de gha 7.5 mm

1625nm

≤1.0

[DB]

Fórsa stiall sciath

Meánfhórsa tipiciúil

1.5

[N]

buaicfhórsa

1.3-8.9

[N]

Paraiméadar Tuirse Dinimiciúil (ND)

-

≥20

-
