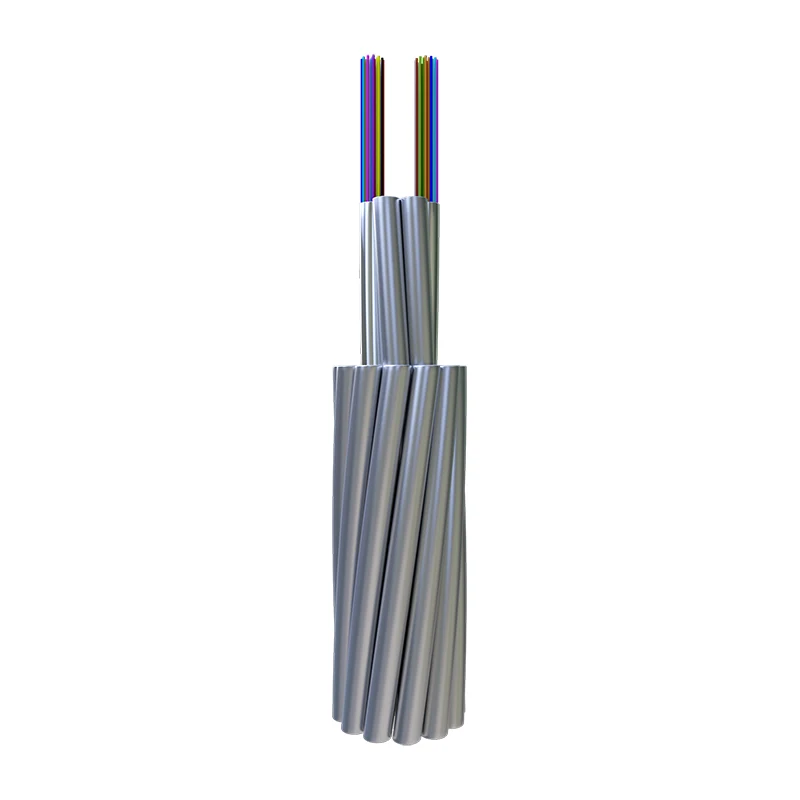

Sreangán lasnairde ilchodach snáithín optúil feadán feadán sáinnithe

Caoradh

Leithead banda

Polarú Scaipeadh mód

@850nm

@1300nm

@1310nm

@1550NM

@850nm

@1300nm

Duine Snámh snámha

Seift Luach naisc (M = 20, Q = 0.01%)

G652D

—

—

≤0.35db/km

≤0.21db/km

—

—

≤0.20ps/ km

≤0.1ps/ km

G655

—

—

—

≤0.22db/km

—

—

≤0.20ps/ km

≤0.1ps/ km

50/125μm

≤3.0db/km

≤1.0db/km

—

—

≥600MHz.km

≥1200MHz.km

—

—

62.5/125μm

≤3.5db/km

≤1.0db/km

—

—

≥200MHz.km

≥600MHz.km

—

—

Aicmiú

Ábhar

Luach

Tógáil

Snáithín optúil

G652D/G655 etc.

2 - 144

Feadán cosanta

Feadán cruach dhosmálta

1.5 - 6mm

Líne sáinnithe

Mar shreang/aa sreang/al slat

1.5 - 6mm

Max. Lárlíne

30mm

Max. Trasghearrthach

500mm²

Saintréith

De réir na gcaighdeán mar DL/T. 832, IEC60794-4-10, IEEE1138

Max. Neart teanntachta (RTS) (KN)

700

Max. Neart crush （N/100mm）

3000

Max. Cumas gearr reatha (40 ℃ go 200 ℃) (KA2S)

2000

Min. Ga lúbthachta (dinimiciúil)

20ú

Min. Ga lúbthachta (statach)

15ú

Comhshaol Léiriú

Suiteáil (℃)

-10 go +50

Iompar agus Oibriú (℃)

-40 go +65

.

Sonraí teicniúla

Cineál táirge

Cineál Struchtúir

Max. Snámh snámha
Cuir

Rannóg de AS Wire
(MM2)

Lárlíne

（Mm）

Meáchan cábla
(kg/km)

Ráta neart teanntachta

（Kn）

20 ℃ DC

Friotaíocht

（Ω/km）

Cumas reatha gearrthréimhse

（40-200 ℃ KA2.S）

1

OPGW-48B1.3-90- [112; 45]

1/2.6/20AS ＋ 4/2.5/20AS ＋

11/2.8/20AS, Aonad Optúil 2/2.5

48

≈90

13.2

≤641

≥112

≤0.98

≥45

2

OPGW-48B1.3-90- [57; 67]

1/2.6/40AS ＋ 4/2.5/40AS ＋

11/2.8/40AS, Aonad Optúil 2/2.5

48

≈90

13.2

≤457

≥57

≤0.52

≥67

3

OPGW-24B1.3-100- [118; 50]

1/2.6/20AS ＋ 5/2.5/20AS ＋

11/2.8/20AS, Aonad Optúil 1/2.5

24

≈100

13.2

≤674

≥118

≤0.93

≥50

4

OPGW-24B1.3-100- [60; 74]

1/2.6/40AS ＋ 5/2.5/40AS ＋

11/2.8/40AS, Aonad Optúil 1/2.5

24

≈100

13.2

≤479

≥60

≤0.49

≥74

5

OPGW-24B1.3-110- [133; 63]

1/2.6/20AS ＋ 5/2.5/20AS ＋

10/3.2/20AS, Aonad Optúil 1/2.5

24

≈110

14

≤760

≥133

≤0.83

≥63

6

OPGW-24B1.3-110- [140; 68]

1/2.8/20AS ＋ 5/2.7/20AS ＋

11/3.05/20AS, Aonad Optúil 1/2.6

24

≈110

14.3

≤791

≥140

≤0.80

≥68

7

OPGW-24B1.3-110- [67; 95]

1/2.9/20AS ＋ 5/2.8/20AS ＋

12/2.8/aa, aonad optúil 1/2.7

24

≈37

≈74 (AA)

14.1

≤473

≥67

≤0.40

≥95

8

OPGW-36B1.3-120- [145; 73]

1/3.0/20AS ＋ 5/2.9/20AS ＋

12/2.9/20AS, Aonad Optúil 1/2.8

36

≈120

14.6

≤820

≥145

≤0.77

≥73

9

OPGW-36B1.3-120- [95; 98]

1/3.0/30AS ＋ 5/2.9/30AS ＋

12/2.9/30AS, Aonad Optúil 1/2.8

36

≈120

14.6

≤700

≥95

≤0.55

≥98

10

OPGW-36B1.3-120- [74; 110]

1/3.0/40AS ＋ 5/2.9/40AS ＋

12/2.9/40AS, Aonad Optúil 1/2.8

36

≈120

14.6

≤582

≥74

≤0.42

≥110

11

OPGW-72B1.3-120- [147; 76]

1/3.2/20AS ＋ 4/3.0/20AS ＋

12/3.0/20AS, aonad optúil 2/2.9

72

≈120

15.2

≤832

≥147

≤0.76

≥76

12

OPGW-72B1.3-120-2 [96; 101]

1/3.2/30AS ＋ 4/3.0/30AS ＋

12/3.0/30AS, aonad optúil 2/2.9

72

≈120

15.2

≤711

≥96

≤0.53

≥101

13

OPGW-72B1.3-120- [74; 114]

1/3.2/40AS ＋ 4/3.0/40AS ＋

12/3.0/40AS, aonad optúil 2/2.9

72

≈120

15.2

≤591

≥74

≤0.40

≥114

14

OPGW-36B1.3-130- [155; 85]

1/3.2/20AS ＋ 5/3.0/20AS ＋

12/3.0/20AS, aonad optúil 1/2.9

36

≈130

15.2

≤879

≥155

≤0.72

≥85

15

OPGW-36B1.3-130- [102; 114]

1/3.2/30AS ＋ 5/3.0/30AS ＋

12/3.0/30AS, aonad optúil 1/2.9

36

≈130

15.2

≤751

≥102

≤0.50

≥114

16

OPGW-36B1.3-130- [79; 137]

1/3.2/40AS ＋ 5/3.0/40AS ＋

12/3.0/40AS, aonad optúil 1/2.9

36

≈130

15.2

≤624

≥79

≤0.40

≥137

17

OPGW-36B1.3-140- [175; 100]

1/3.3/20AS ＋ 5/3.2/20AS ＋

12/3.2/20AS, Aonad Optúil 1/3.1

36

≈140

16.1

≤995

≥175

≤0.65

≥100

18

OPGW-36B1.3-140- [115; 140]

1/3.3/30AS ＋ 5/3.2/30AS ＋

12/3.2/30AS, Aonad Optúil 1/3.1

36

≈140

16.1

≤850

≥115

≤0.45

≥140

19

OPGW-36B1.3-145- [86; 170]

1/3.3/20AS ＋ 5/3.2/20AS ＋

12/3.2/aa, aonad optúil 1/3.1

36

≈49

≈96 (AA)

16.1

≤611

≥86

≤0.31

≥170

20

OPGW-48B1.3-150- [182; 123]

1/3.4/20AS ＋ 5/3.3/20AS ＋

12/3.3/20AS, aonad optúil 1/3.2

48

≈150

16.6

≤1055

≥182

≤0.60

≥123

21

OPGW-48B1.3-150- [122; 165]

1/3.4/30AS ＋ 5/3.3/30AS ＋

12/3.3/30AS, Aonad Optúil 1/3.2

48

≈150

16.6

≤901

≥122

≤0.42

≥165

22

OPGW-48B1.3-150- [95; 195]

1/3.4/40AS ＋ 5/3.3/40AS ＋

12/3.3/40AS, Aonad Optúil 1/3.2

48

≈150

16.6

≤747

≥95

≤0.33

≥195

23

OPGW-72B1.3-150- [172; 110]

1/3.4/20AS ＋ 4/3.3/20AS ＋

12/3.3/20AS, Aonad Optúil 2/3.2

72

≈150

16.6

≤998

≥172

≤0.64

≥110

24

OPGW-72B1.3-150- [116; 147]

1/3.4/30AS ＋ 4/3.3/30AS ＋

12/3.3/30AS, aonad optúil 2/3.2

72

≈150

16.6

≤853

≥116

≤0.45

≥147

25

OPGW-48B1.3-170- [198; 150]

1/3.6/20AS ＋ 5/3.5/20AS ＋

12/3.5/20AS, aonad optúil 1/3.4

48

≈170

17.6

≤1190

≥198

≤0.54

≥150

26

OPGW-72B1.3-170- [199; 156]

1/3.8/20AS ＋ 4/3.6/20AS ＋

12/3.6/20AS, Aonad Optúil 2/3.5

72

≈170

18.2

≤1187

≥199

≤0.54

≥156

27

OPGW-48B1.3-180- [252; 125]

1/3.8/14AS ＋ 5/3.6/14AS ＋

12/3.6/14AS, Aonad Optúil 1/3.5

48

≈180

18.2

≤1372

≥252

≤0.72

≥125

28

OPGW-48B1.3-180- [211; 175]

1/3.8/20AS ＋ 5/3.6/20AS ＋

12/3.6/20AS, Aonad Optúil 1/3.5

48

≈180

18.2

≤1255

≥211

≤0.50

≥175

29

OPGW-48B1.3-180- [147; 234]

1/3.8/30AS ＋ 5/3.6/30AS ＋

12/3.6/30AS, Aonad Optúil 1/3.5

48

≈180

18.2

≤1071

≥147

≤0.35

≥234

30

OPGW-48B1.3-180- [113,262]

1/3.8/40AS ＋ 5/3.6/40AS ＋

12/3.6/40AS, Aonad Optúil 1/3.5

48

≈180

18.2

≤888

≥113

≤0.28

≥262

31

OPGW-48B1.3-235- [268; 243.4]

1/2.7/20AS ＋ 4/2.5/20AS ＋

12/2.5/20AS+13/3.8/20AS,

Aonad Optúil 1/3.5

48

≈235

20.3

≤1594

≥268

≤0.38

≥243.4

Mír

Seó Modh

Riachtanas

Teannas

IEC 60794-1-2-E1

LOAD: De réir struchtúr cábla

Triail Fad: Níl níos lú ná 10m, fad nasctha nach lú ná100m

Fadfhad Am: 1min

40%RTS Gan aon bhrú breise （0.01%）, gan aon bhreise tanú (0.03db).

60%RTS Strain≤0.25%, breise tanú ≤0.05db

(Uimh tanú breise tar éis tástála).

Brú

IEC 60794-1-2-E3

LOAD: De réir an tábla thuas, trí phointe

Fadfhad Am: 10min

Breise tanú ag 1550nm ≤0.05db/fógra; Gan aon damáiste do na heilimintí

Uisce a thabhairt do Treá

IEC 60794-1-2-F5B

Am : Fad samplach 1 uair an chloig: 0.5m

Uisce a thabhairt do Airde: 1m

Ar bith sceitheadh ​​uisce.

Teocht Rothaíocht

IEC 60794-1-2-F1

Triail Fad: Níl níos lú ná 500m ar a laghad

Teocht Raon: -40 ℃ go +65 ℃

Timthriallta: 2

Teocht TÁSTÁIL CHEIBREÁIN AMA TACAÍOCHTA: 12h

An beidh an t -athrú ar an gclaonadh tanúcháin níos lú ná 0.1db/km ag 1550Nm.
